BSC-Taxi Topper LED Sign

Pixel Pitch (mm) : 3.076

Pixel Density (dot/m²) : 105625

LED Type : SMD1415

Module Size (W × H) mm : 320 × 160

Module Resolution (W × H) : 104 × 52

Module Weight (kg) : 0.32

Power Consumption per Module (W) : 35~40

Driver Mode (Scan) : 1/13

Brightness (cd/m²) : 4000~4500

Grey Scale (bits) : 14

Refresh Rate (Hz) : ≥3840

Unit Size (W × H × D) mm : 1046 × 400 × 139

Display Size (W × H) : 960 × 320

Display Resolution (W × H) : 312 × 104

Unit Weight (kg/PC) : 17 (additional packaging material 21KG)

Max Power Consumption (W/Sets) : 420~480

Average Power Consumption (W/m²) : 126~144

Viewing Angle - Degree: H : 120°

Viewing Angle - Degree: V : 120°

Mini View Distance (m) : 3

Use Temperature (°C) - Operating : -10°C~40°C / 14°F~104°F

Use Temperature (°C) - Storage : -10°C~40°C / 14°F~104°F

Input Voltage : -10°C~40°C / 14°F~104°F

Failure Rate : <1/50,000

Control Type : WiFi & 4G optional

Life Time (hrs) : 50,000

IP Level : IP65

Contact Now

BSC-Taxi LED Sign

BSC - Taxi LED Sign is a high-brightness mobile advertising display designed for taxi roof applications. It features customizable housing color, lightweight structure, outdoor durability, low power consumption, and anti-shock performance for stable vehicle-mounted operation. With 4000–4500 cd/m² brightness, 14-bit grayscale, ≥3840Hz refresh rate, IP65 protection, and DC 9–36V input, it delivers clear and reliable advertising on the move. Optional Wi-Fi, 4G, USB, RJ45, and GPS fixed-point playback allow flexible content management based on vehicle location.

BSC-Taxi Topper LED Sign

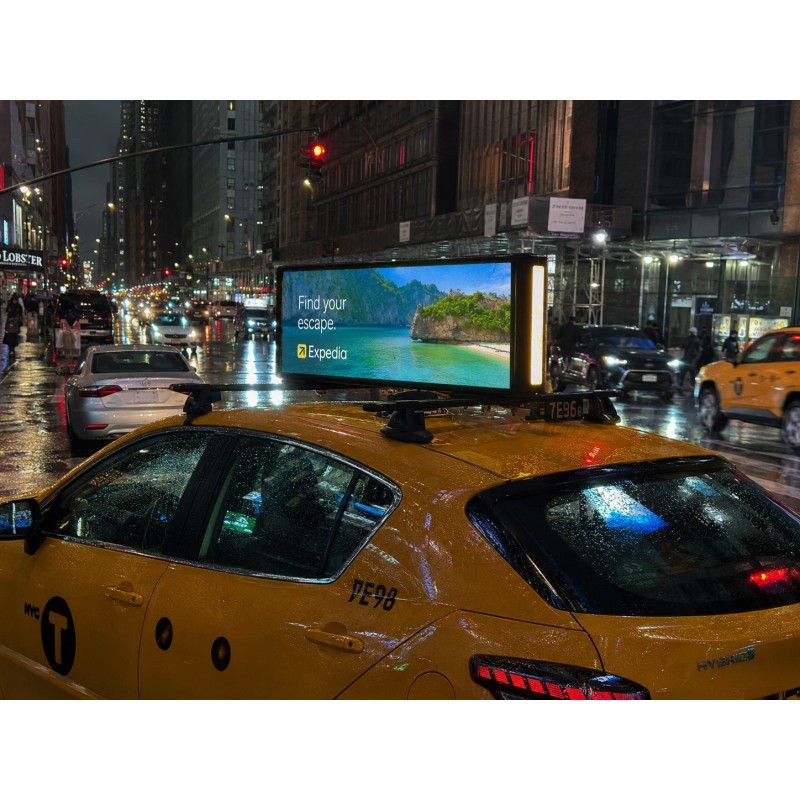

Taxi LED Sign Application Cases

Taxi LED Sign aging test in manufacutre

BSC-Taxi Topper LED Sign

Technical Specifications

Pixel Pitch (mm)	2	2.5	3.076	4	5
Pixel Density (dot/m²)	250000	160000	105625	62500	40,000
LED Type	SMD1415	SMD1415	SMD1415	SMD1921	SMD1921
Module Size (W × H) mm	320 × 160	320 × 160	320 × 160	320 × 160	320 × 160
Module Resolution (W × H)	160 × 80	128 × 64	104 × 52	80 × 40	64 × 32
Module Weight (kg)	0.32	0.32	0.32	0.28	0.28
Power Consumption per Module (W)	35~40	35~40	35~40	35~40	35~40
Driver Mode (Scan)	1/20	1/16	1/13	1/8	1/8
Brightness (cd/m²)	4000~4500	4000~4500	4000~4500	4000~4500	4000~4500
Grey Scale (bits)	14	14	14	14	14
Refresh Rate (Hz)	≥3840	≥3840	≥3840	≥3840	≥3840
Unit Size (W × H × D) mm	1046 × 400 × 139	1046 × 400 × 139	1046 × 400 × 139	1046 × 400 × 139	1046 × 400 × 139
Display Size (W × H)	960 × 320	960 × 320	960 × 320	960 × 320	960 × 320
Display Resolution (W × H)	480 × 160	384 × 128	312 × 104	240 × 80	192 × 64
Unit Weight (kg/PC)	17 (additional packaging material 21KG)	17 (additional packaging material 21KG)	17 (additional packaging material 21KG)	17 (additional packaging material 21KG)	17 (additional packaging material 21KG)
Max Power Consumption (W/Sets)	420~480	420~480	420~480	420~480	420~480
Average Power Consumption (W/m²)	126~144	126~144	126~144	126~144	126~144
Viewing Angle - Degree: H	120°	120°	120°	120°	120°
Viewing Angle - Degree: V	120°	120°	120°	120°	120°
Mini View Distance (m)	2	2.5	3	4	5
Use Temperature (°C) - Operating	-10°C~40°C / 14°F~104°F	-10°C~40°C / 14°F~104°F	-10°C~40°C / 14°F~104°F	-10°C~40°C / 14°F~104°F	-10°C~40°C / 14°F~104°F
Use Temperature (°C) - Storage	-20°C~50°C / -4°F~122°F	-20°C~50°C / -4°F~122°F	-20°C~50°C / -4°F~122°F	-20°C~50°C / -4°F~122°F	-20°C~50°C / -4°F~122°F
Input Voltage	DC9~36V	DC9~36V	DC9~36V	DC9~36V	DC9~36V
Failure Rate	<1/50,000	<1/50,000	<1/50,000	<1/50,000	<1/50,000
Control Type	WiFi & 4G optional	WiFi & 4G optional	WiFi & 4G optional	WiFi & 4G optional	WiFi & 4G optional
Life Time (hrs)	50,000	50,000	50,000	50,000	50,000
IP Level	IP65	IP65	IP65	IP65	IP65

BSC-Taxi Topper LED Sign Images
